Supermicro SuperChassis CSE-505-203B (Black)
9.8" depth small form factor 1U, 200W Gold level power supply Optimized for Mini-ITX (6.75"x 6.75") Motherboard Front I/O Ports 1x 3.5" Internal Drive Bay with 1x Half-height, Half-length PCI OR 2x 3.5" Internal Drive Bay OR 2x 2.5" Internal Drive Bay with 1x Full-height, Half-length PCI OR 4x 2.5" Internal Drive Bay Power Switch, Reset Button and 5x LED Indicators Dimensions: Height 1.7" (43mm), Width 17.2" (437mm), Depth 9.8" (249mm) Gross Weight 10 lbs (4.5kg)
Price on request
Immediately available (1-2 business days)
Supermicro SuperChassis 825TQC-R802LPB
2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards 8 x 3.5" hot-swap SAS3/SATA drive bay, 2 x 3.5" fixed drive bay 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium 7 low-profile expansion slot(s) 3 x 80mm Hot-swap PWM Fans Dimensions: Height 3.5" (89 mm), Width 17.2" (437 mm), Depth 25.5" (647 mm) Gross Weight: 52 lbs (23.59 kg)
Price on request
Immediately available (1-2 business days)
Supermicro SuperChassis LA25TQC-R609LP (Black)
2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", EE-ATX 13" x 13.68" motherboards Support up to ATX 12"x13" MB with rear 2.5" HDD option installed 8x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bay Optional 2x 3.5" fixed drive bay Optional rear 2x 2.5" hot-swap drive bay kit 2U 8-Slot 12G Backplane for 8x 3.5" SAS3/SATA HDD/SSD 600W / 650W 1U Redundant Power Supply 7 low-profile expansion slot(s) 3x 80mm heavy duty fan(s) with PWM fan(s) speed control Dimensions: Height 3.5" (89mm), Width 17.2" (437mm), Depth 25.5" (647mm) Gross Weight 52 lbs (23.6 kg)
Price on request
Immediately available (1-2 business days)
Supermicro SuperChassis 731I-404B
90° Rotatable HDD Cage Whisper-Quiet (<25dB) Kensington Lock Support Front I/O Supports 2x USB 3.0 1x Optional Front Intake 8cm (2800 RPM) PWM Fan Mini-Tower Chassis Supports Micro-ATX Motherboard, Size 9.6" x 9.6" 400W Gold Level Certified High-Efficiency Power Supply 1x Rear 9cm (2050 RPM) PWM Fan 2x 5.25" External HDD Drive Bays & 4x 3.5" Internal HDD Drive Bays Dimensions: Height 14.25" (362 mm), Width 7.25" (184 mm), Depth 16.75" (425 mm) Gross Weight 20 lbs (9.07 kg)
Price on request
Immediately available (1-2 business days)
Supermicro SuperChassis 721TQ-350B2
Compact Mini-Tower: D 11"x W 8.27"x H 9.45" Support wide range of Mini-ITX (6.75"x 6.75") motherboards 4 3.5" Hot-Swap SATA3/SAS2 drive bays, 2 internal 2.5" SATA drive bays, and 1 slim DVD-ROM drive bay 2 USB3.1 Gen1 ports(front), chassis intrusion switch, Kensington Lock supported 1 low-profile expansion slot for add-on cards 350W 80 PLUS Gold-certified High-efficiency power supply Dimensions: Height 9.45" (240.03mm), Width 8.27" (210.06mm), Depth 11" (279.4mm) Gross Weight: 15 lb (6.8 kg)
Price on request
Immediately available (1-2 business days)
Supermicro SuperChassis LA26E1C4-R609LP (Black)
2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", EE-ATX 13" x 13.68" motherboards Support up to ATX 12"x13" MB with rear 2.5" HDD option installed 12x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bay with SES3 Optional rear 2x 2.5" hot-swap drive bay kit 2U 12-Port SAS3 12Gbps Backplane single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices 600W / 650W 1U Redundant Power Supply 7 low-profile expansion slot(s) 3x 80mm heavy duty fan(s) with PWM fan(s) speed control Dimensions: Height 3.5" (89mm), Width 17.2" (437mm), Depth 25.5" (647mm) Gross Weight 52 lbs (23.6 kg)
Price on request
Immediately available (1-2 business days)
Supermicro SuperChassis 504-203B (Black)
Mini 1U Chassis 200W High-efficiency Power Supply Gold Level Certified Rear I/O Ports 1x 3.5" Internal Drive Bay with 1x Half-height, Half-length PCI OR 2x 3.5" Internal Drive Bay OR 2x 2.5" Internal Drive Bay with 1x Full-height, Half-length PCI OR 4x 2.5" Internal Drive Bay Power Switch, Reset Button and 5x LED Indicators Dimensions: Height 1.7" (43mm), Width 17.2" (437mm), Depth 9.8" (249mm) Gross Weight 10 lbs (4.5kg)
Price on request
Immediately available (1-2 business days)
Supermicro SuperChassis 743AC-1K26B-SQ
8x 3.5"/2.5" SAS3/SATA3 Backplane for Hot-Swappable Drives Whisper-Quiet (<27dB) Front HDD Door Lock & Side Panel Intrusion Switch Front I/O Ports: 2x USB 3.0 2x 8cm PWM Fans & 1x 9cm Rear PWM Fan 4U / Full Tower Chassis Supports max. Motherboard, Sizes – E-ATX 12" x 13"/ATX/Micro ATX 1200W Platinum Level Certified High-Efficiency Power Supply 3x 5.25" External HDD Drive Bays & 8x 3.5"/2.5" Hot-Swappable HDD Drives Form Factor: 4U chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX and ATX Dimensions: Height 17.8" (452 mm), Width 7" (178 mm), Depth 25.5" (647 mm) Gross Weight: 56 lbs (25.4 kg)
Price on request
Immediately available (1-2 business days)
Supermicro SuperChassis LA26AC12-R920LP1
2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed 12x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay with SES3 Optional rear 2x 2.5" hot-swap drive bay kit 12-port LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Device 920W 1U Redundant Power Supply 7x low-profile expansion slot(s) 3x 8cm high-performance PWM fan(s) Support service tag for system information Comes with standard 2U package with 2-layer carton and SMC logo Dimensions: Height 3.5" (89mm), Width 17.2" (437mm), Depth 25.5" (647mm) Gross Weight 69 lbs (31.3 kg)
Price on request
Immediately available (1-2 business days)
Supermicro SuperChassis 745BAC-R1K23B-SQ
8x 3.5"/2.5" SAS/SATA Backplane for Hot-Swappable Drives Whisper-Quiet (<27dB) Front HDD Door Lock & Side Panel Intrusion Switch Front I/O Ports: 2x USB 3.0 2x 8cm (2800 rpm) PWM Fans & 1x 9cm (2400 rpm) PWM Fans 1230W (1 + 1) Redundant Titanium Level Certified High-Efficiency Power Supply 3x 5.25" External HDD Drive Bays & 8x 3.5/2.5" Hot-Swappable HDD Drives Form Factor: 4U tower chassis - supports maximum motherboard sizes up to E-ATX 13.68" x 13" Dimensions: Height 7.0" (178mm), Width 17.8" (452 mm), Depth 25.5" (647 mm) Gross Weight 62 lbs (28.12 kg)
Price on request
Immediately available (1-2 business days)
Supermicro SuperChassis 813MF2TQC4-R407CB
1U chassis, support motherboard sizes: ATX 12" x 10" and Micro ATX 9.6" x 9.6" 4 x 3.5" hot-swap SAS3/SATA drive bay SAS or enterprise SATA HDD only recommended 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices 1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm 1 full height expansion slot(s) 4 x 40x28mm PWM fan(s) Optional 2 x fans for AOC cooling Form Factor: 1U Chassis for motherboard support size: ATX 12" x 10" and Micro ATX 9.6" x 9.6" Dimensions: Height 1.7" (43mm), Width 17.2" (437mm), Depth 19.98" (507 mm) Gross Weight 33.5 lbs (15.2 kg)
Price on request
Immediately available (1-2 business days)
Supermicro SuperChassis 515-R407
Support STD and WIO MB Up to 2 x 2.5" fixed with bracket 1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm Up to, 2 full height expansion slot(s) 4 x 40x56mm PWM fan(s) Optional 2 x fans for AOC cooling Dimensions: Height 1.7" (43mm), Width 17.2" (437mm), Depth 16.9" (429mm) Gross Weight 18 lbs (8.16 kg)
Price on request
Immediately available (1-2 business days)
Supermicro SuperChassis 815TQ-R700WB
1U Chassis support for max. motherboard size E-ATX 12" x 13" - optimized for WIO motherboard 4 x 3.5" hot-swap SAS/SATA drive bay with SES2 SAS or enterprise SATA HDD only recommended 4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD 1U 700/750W hot swap redundant power supply. 2 full height expansion slot(s) (Riser Card Required), 1 low-profile expansion slot(s) (Riser Card Required 4 x 4cm heavy duty counter-rotating with optimal fan(s) speed control Optional 2 x fans for AOC cooling Dimensions: Height: 1.7" (43mm), Width: 17.2" (437mm), Depth: 25.6" (650mm) Gross Weight: 36 lbs (16.3kg)
Price on request
Immediately available (1-2 business days)
Supermicro SuperChassis 745BAC-R1K23B
8x 3.5"/ 2.5" SAS3/SATA3 Backplane for Hot-Swappable Drives Front HDD Door Lock & Side Panel Intrusion Switch Front I/O Ports: 2x USB 3.0 3x Middle 8cm (9400 rpm) PWM Fans & 2x 8cm (9400 rpm) PWM Fans 1230W (1 + 1) Redundant Titanium Level Certified High-Efficiency Power Supply 3x 5.25" External HDD Drive Bays & 8x 3.5"/2.5" Hot-Swappable HDD Drives Form Factor: 4U tower chassis - supports maximum motherboard sizes up to E-ATX 13.68" x 13" Dimensions: Height 7.0" (178mm), Width 17.8" (452 mm), Depth 25.5" (647 mm) Gross Weight 62 lbs (28.12 kg)
Price on request
Immediately available (1-2 business days)
Supermicro SuperChassis 213BAC8-R1K23WB
2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO, 13.68" x 13" motherboards 16 x 2.5" hot-swap SAS3/SATA drive bay, 1 x 5.25" drive bay, optional 2 x 2.5" hot-swap SAS/SATA drive bay 16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm 4x full-height & full-length expansion slot(s) and 3x low-profile expansion slot(s) 3 x 8cm high-performance PWM fan(s) Dimensions: Width 17.2" (437mm), Height 3.5" (89mm), Depth 24.8" (630mm) Weight Gross: 60 lbs (27.22 kg)
Price on request
Immediately available (1-2 business days)
Supermicro SuperChassis 813MFTQC-R407CB (Black)
1U chassis, support motherboard size ATX 12" x 10" and Micro ATX 9.6" x 9.6". 4 x 3.5" hot-swap SAS/SATA 4-port 1U SAS3 12Gbps TQ backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD 1U 400W Redundant Power Supply Platinum with PMBUS, W54.5xL220xH40mm Up to, 1 full-height & full-length expansion slot(s) 4 x 40x28mm PWM fan(s) Dimensions: Height 1.7" (43mm), Width 17.2" (437mm), Depth 19.85" (503mm) Gross Weight 33.5 lbs (15.2kg)
Price on request
Immediately available (1-2 business days)
Supermicro SuperChassis 116AC2-R706WB2
1U chassis for motherboard support size of E-ATX 12"x13", 13.38"x 13.4". Optimized for X11 WIO (W series) motherboards 10 x 2.5" hot-swap SAS/SATA drive bay 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices 1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width 2 full height expansion slot(s), 1 low-profile expansion slot(s) 4 x 40x56mm counter-rotation PWM fan(s) Optional 2 x fans for AOC cooling Dimensions: Height 1.7" (43mm), Width 17.2" (437mm), Depth 23.5" (597mm) Gross Weight 36 lbs (16.3kg)
Price on request
Immediately available (1-2 business days)
Supermicro SuperChassis 825TQC-R1K03LPB
SAS3 (12 Gbps) HDD support 8x 3.5" Hot-swap SAS3/ SATA Drive Bays & 2x Fixed 3.5" Drive Bays 1000W Redundant Power Supplies Titanium Level (96%) Adjustable Air Shroud with Enhanced cooling design 7 Slots Low-profile PCI expansion Power button, Power switch & 6 LED Indicators Dimensions: Height 3.5" (89mm), Width 17.2" (437mm), Depth 25.5" (647mm) Gross Weight 52 lbs (23.6 kg)
Price on request
Immediately available (1-2 business days)
Supermicro SuperChassis 732i-R600B
90° Rotatable HDD Cage Kensington Lock Support Front I/O Ports: 2x Audio (HD/AC97) & 2x USB 3.0 & 2x USB 2.0 1x Optional Front 12cm (1850 RPM) PWM Fan Mid-Tower Chassis Supports Micro-ATX Motherboard, Sizes – E-ATX/ATX/Micro ATX 600W Redundant Power Supply 1x Rear 12cm (1850 RPM) PWM Fan 2x 5.25" External HDD Drive Bays & 4x 3.5" Internal HDD Drive Bays Dimensions: Height: 7.6" (193 mm), Width: 16.7" (424 mm), Depth: 20.68" (525.3 mm) Weight: 30 lbs (13.6 kg)
Price on request
Immediately available (1-2 business days)
Supermicro SuperChassis 826BE1C4-R1K23LPB
2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed 12 x 3.5" hot-swap SAS/SATA drive bay with SES3, optional 2 x 2.5" hot-swap drive bay 12-port 2U SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL360xH40mm 7 low-profile expansion slot(s) 3 x 8cm high-performance PWM fan(s) Dimensions: Width 17.2" (437mm), Height 3.5" (89mm), Depth 25.5" (647 mm) Gross Weight 55 lbs (24.95 kg)
Price on request
Immediately available (1-2 business days)

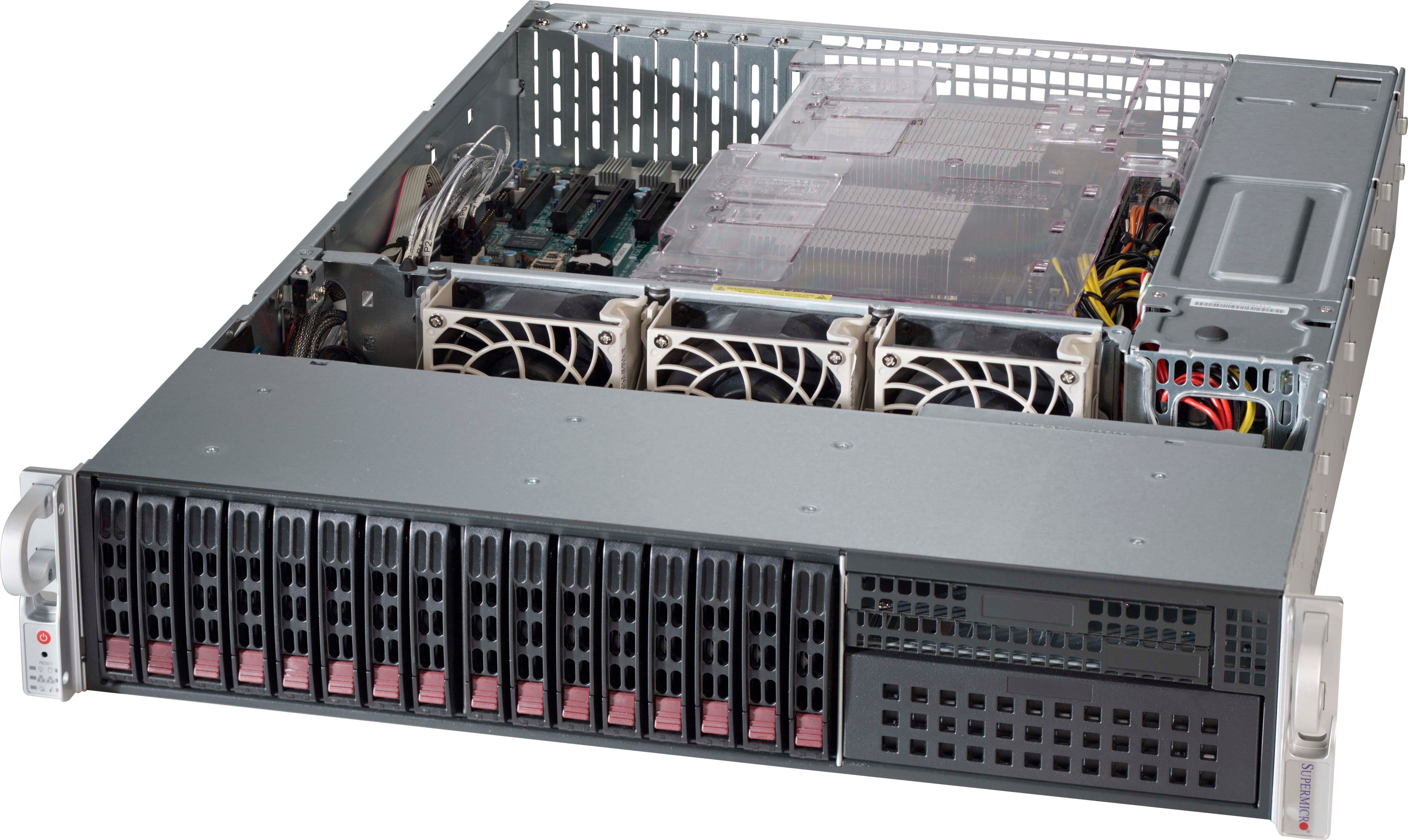

Supermicro SuperChassis 213BAC8-R1K23LPB
2U chassis supports for maximum motherboard sizes - 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards 16 x 2.5" hot-swap SAS3/SATA drive bay, 1 x 5.25" drive bay, optional 2 x 2.5" hot-swap SAS3/SATA drive bay 16-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 8x SAS3/SATA3/NVMe Storage Devices 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm 7x Low profile I/O Expansion Slot 3 x 8cm high-performance PWM fan(s) Dimensions: Width 17.2" (437mm), Height 3.5" (89mm), Depth 24.8" (630mm) Weight Gross: 60 lbs (27.22 kg)
Price on request
Immediately available (1-2 business days)
Supermicro SuperChassis CSE-216BE1C-R920LPB (black)
2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed 24 x 2.5" hot-swap SAS/SATA drive bay, optional 2 x 2.5" hot-swap drive bay 24-port 2U SAS3 12Gbps single-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD 1U 920W Redundant Platinum Super Quiet power supply W/PMbus 7 low-profile expansion slot(s) 3 x 8cm high-performance PWM fan(s) Optional 5 x 6cm 4pin high performance fan(s) Dimensions: Width 17.2" (437mm), Height 3.5" (89mm), Depth 24.8" (630mm) Weight: Net Weight: 53 lbs (24kg)
Price on request
Immediately available (1-2 business days)
Supermicro CSE-M28SAB Mobile Rack (black)
8x 2.5" Hot-swap SAS/SATA HDDs Overheat LED and Alarm Drive Activity / Failure LED 2x 5.25" Drive Bay Enclosure 2x iPASS Connectors Fan-less Subsystem Dimensions: 5.75" x 3.35" x 7.38" (146x85x187 mm) Weight: 3.2 lbs (1.44 kg) Mobile rack only
Price on request
Immediately available (1-2 business days)
Supermicro CSE-M28E1 Mobile Rack (Beige)
8x 2.5" Hot-swap SAS / SATA Hard Disk Drive Tray, Overheat LED and Alarm, Fan Failure LED and Alarm, Drive Activity LED, Drive Failure LED, 2x 5.25" Drive Bay Enclosure, 8cm Cooling Fan Subsystem, 1x Expander Supporting SAS / SATA HDD, Dimensions: 5.8" (147mm) x 3.2" (80mm) x 7.9" (200mm) - With Fan, 5.8" (147mm) x 3.2" (80mm) x 6.5" (174mm) - Without Fan
Price on request
Immediately available (1-2 business days)
Chassis – relevant information
Which devices do you want to mount?
The number of devices to be mounted, i.e. SSD and HDD hard disks, as well as the number of other storage and peripheral devices is decisive for the selection of the right chassis.In what environment is the chassis located?
In particular, it is important whether multiple servers are connected in parallel: Is there enough rack space available for the chassis Die gute Nachricht: Eine Anschlussmöglichkeit von Hardware zur Dateneingabe ist nicht mehr nötig, da die Installation und Wartung von Anwendungen und Betriebssystemen heutzutage über IPMI gesteuert wird.Tower Chassis, 1U, 2U, 3U or 4U?
A Tower Chassis is the smallest variant, followed by 1U, 2U, 3U and 4U. The U stands for Rack Unit - a size unit.1U means 4,4 cm.
2U means 8,9 cm.
3U means 13,3 cm.
4U means 17,78 cm.
First, choose the right size.
