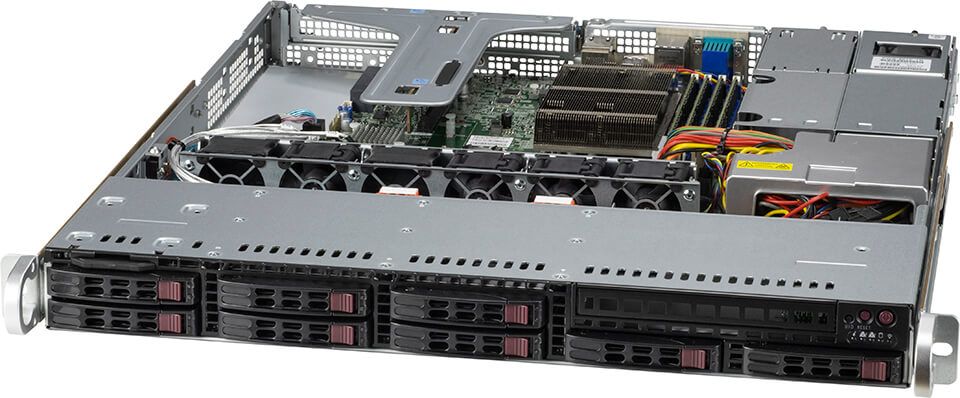

Produktinformationen "Supermicro SuperServer 110T-M"
Single Socket H5 (LGA-1200) supports
Intel Xeon E-2300 series, Intel Pentium processors
4 DIMMs Up to 128GB of DDR4 ECC UDIMM
memory with speeds of up to 3200MHz
1 PCI-E 4.0 x16 or 2 PCI-E 4.0 x8 (FHHL)
1 Dedicated Internal HBA slot
Intel Ethernet Controller i210 2x 1GbE RJ45
8x Hot-swap 2.5" SATA3 drive bays, SAS3
w/ additional SAS controller card
Onboard 1x NVMe M.2
Default single Platinum 400W Power Supply
Optional redundant power by adding 1x Power Supply Module
Form Factor: 1U Rackmount
Dimensions: Height 1.7" (43mm), Width 17.2" (437mm), Depth 19.98" (507mm)
Gross Weight: 30.4 lbs (13.8 kg)
| Hersteller: | Supermicro |
|---|---|
| HE: | 1U |
| CPU Sockel Typ: | Socket LGA-1200 |
| CPU Sockel: | 1 (UP) |
| Servertyp: | Mainstream Server |
| DRAM Typ: | DDR4 |
| DRAM Slots: | 4 |
| Onboard LAN: | 1Gbit/s |
| Netzteile: | 1 |
