Motherboards von Supermicro, Gigabyte, AMD und Intel

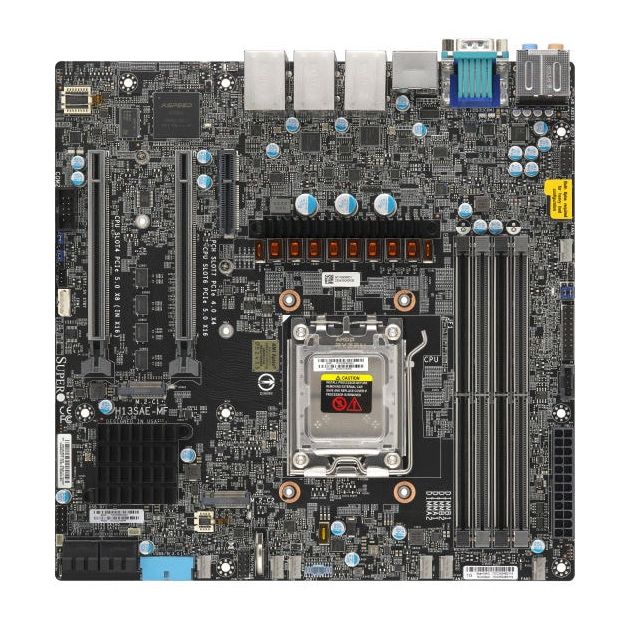

Micro-ATX (9.6"x 9.6") Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1 Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4) 2 RJ45 (1GbE) by Intel® i210 4 SATA 6Gb/s 1 HDMI, 1 DisplayPort Remote management (IPMI) COO: VIETNAM

Support ATX PSU or 12V DC-in Micro-ATX (9.6" x 9.6") Supports AMD EPYC™ 4005/4004 and AMD Ryzen 9000/8000/7000 series Processors 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM 1 PCIe5.0 x16* 1 MCIO (PCIe5.0 x8)* 1 MCIO (2 PCIe5.0 x4)* Supports 2 M.2 (PCIe5.0 x4)* 2 SATA 6Gb/s 2 RJ45 (1GbE) by Intel® i210 1 HDMI, 1 DisplayPort Remote management (IPMI) COO: VIETNAM

Intel® Xeon® E-2300 Processor, 10th Generation Intel® Pentium® Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP Intel® C252 Up to 128GB ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots 1 PCI-E 4.0 x8, 1 PCI-E 4.0 x8 (in x16 slot), 1 PCI-E 4.0 x4 (in x8 slot)1 PCI-E 3.0 x2 (in x4 slot) M.2 Interface: 1 PCI-E 3.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key Dual LAN with Intel® Ethernet Controller I210 Intel® C252 controller for 6 SATA3 (6 Gbps) ports, RAID 0,1,5,10 1 VGA D-Sub Connector port 2 SuperDOM with built-in power I/O: 1 VGA, 2 COM, 1 TPM header 5x USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 4x USB 2.0 (2 rear, 2 via headers) Form Factor: Micro-ATX Dimensions: 9.6" x 9.6" (24.38cm x 24.38cm)

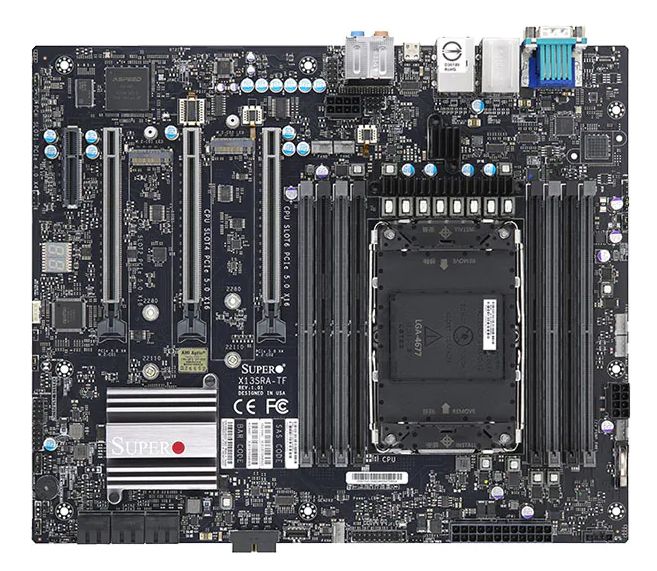

5th/4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP Intel C741® Chipset Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 8 DIMM slots 2 MCIO (PCIe5.0 x8) connectors for 4 NVMe SSDs 3 PCIe 5.0 x8, 2 PCIe 5.0 x16, M.2 Interface: 2 PCIe 5.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key Dual LAN with 1GbE with Intel® I210 4 USB 3.2 Gen1 (2 rear, 1 Type-A, 1 via header), 2 USB 2.0 (2 rear) Intel® C741 controller for 10 SATA3 (6 Gbps) ports Form Factor: ATX Dimensions: 12.3" x 10.3" (31.24cm x 26.16cm)

Intel® Xeon® E-2400 Series Processor, Pentium®* Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP Intel® C262 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Up to 128GB ECC Unbuffered DIMM, DDR5-4400MHz, in 4 DIMM slots 1 PCIe 5.0 x8 1 PCIe 5.0 x8 (in x16) 2 PCIe 4.0 x4 (in x8) Dual LAN with Intel® i210 Gigabit Ethernet Controller M.2 Interface: 1 PCIe 4.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key 4 USB 3.2 Gen1 ports (2 rear + 2 via header) 6 USB 2.0 ports (2 rear+ 4 via header) 1 USB 3.2 Gen1 Type-A header Form Factor: microATX Dimensions: 9.6" x 9.6" (24.38cm x 24.38cm)

Intel® Xeon® E-2400 Series Processor, Pentium® Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP Intel® C262 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Up to 64GB ECC Unbuffered DIMM, DDR5-4800MHz, in 4 DIMM slots 1 PCIe 5.0 x16 2 SlimSAS (2 PCIe 4.0x4 or 1 PCIe 4.0x4 & 4 SATA) Dual LAN with Intel® i210 Gigabit Ethernet Controller M.2 Interface: 1 PCIe 4.0 x4 M.2 Form Factor: 2280 M.2 Key: M-Key 4 USB 3.2 Gen1 ports (2 rear + 2 via header) 2 USB 2.0 ports (2 rear) Form Factor: Mini-ITX Dimensions: 6.7" x 6.7" (17.02cm x 17.02cm)

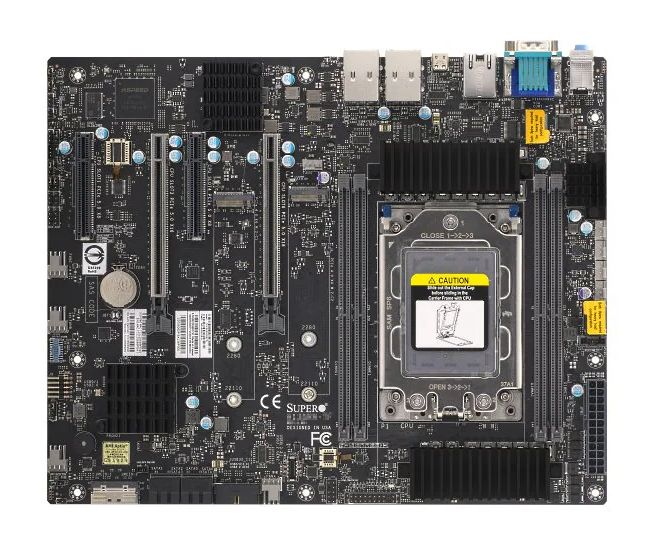

AMD EPYC(TM) 9004/9005 Series Processors (AMD EPYC(TM) 9005 series drop-in support requires board revision 2.x) System on Chip Support up to DDR5 12 DIMM slots (1DPC) 3 PCIe 5.0 x16 2 PCIe 5.0 x8 2x 10GBase-T LAN Ports via Broadcom BCM57416 Up to 6 USB 3.0 ports(4 rear + 2 via header) 8 SATA3 ASPEED AST2600 BMC graphics 6 PWM 4-pin Fans with tachometer status monitoring M.2 Interface: 2 PCIe 4.0 x4 M.2 Form Factor: 2280, 22110 Form Factor: ATX Dimensions: 12" x 10.1" (30.48cm x 25.65cm)

Micro-ATX (9.6"x 9.6") Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1 Supports 1 M.2 (PCIe5.0 x4) 2 RJ45 (10GbE) by Broadcom BCM57416 2 RJ45 (1GbE) by Intel® i210 4 SATA 6Gb/s 1 HDMI, 1 DisplayPort Remote management (IPMI) COO: VIETNAM

5th/4th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP Support CXL Intel® C741 Chipset Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots 4 PCIe 5.0 x16 2 PCIe 5.0 x8 Broadcom BCM5720 Dual ports 1G LAN 6 USB3.0 and 3 USB2.0 2 SATA DOM ports 2 M.2 6 NVMe ports PCIe 5.0 x4 via 3 MCIO connectors 8 SATA3.0 ports Form Factor: EATX Dimension: 12.1" x 13.05" (30.74cm x 33.15cm)

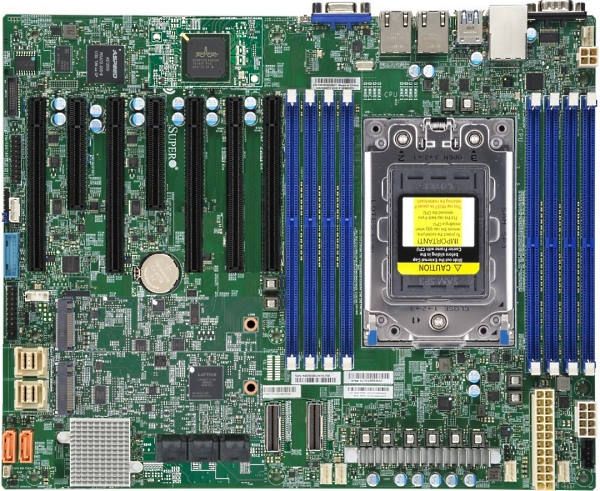

Single AMD EPYC(TM) 7003/7002 Series Processors (7003 Series Processor drop-in support requires BIOS version 2.0 or newer) 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs Expansion slots: 5 PCI-E 4.0 x16 2 PCI-E 4.0 x8 M.2 Interface: 2 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key 2 M.2, 2 SlimSAS x8 (each: 8 SATA3 or 2 NVMe) Dual 10GBase-T LAN via Broadcom BCM57416 ASPEED AST2500 BMC graphics Up to 6 USB 3.0 ports (4 rear + 2 via header) 7 PWM 4-pin Fans with tachometer status monitoring Form Factor: ATX Dimensions: 12" x 9.6" (30.5cm x 24.4cm)

Intel® Xeon® E-2400 Series Processor, Pentium® Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP Intel® C266 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Up to 128GB ECC Unbuffered DIMM, DDR5-4400MHz, in 4 DIMM slots 1 PCIe 5.0 x16 2 PCIe 4.0 x4 ( in x8) I/O: 1 VGA, 2 COM, 1 TPM header M.2 Interface: 2 PCIe 4.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key Dual LAN with Intel® i210 Gigabit Ethernet Controller 5 USB 3.2 Gen1 ports (2 rear + 1 Type A + 2 via header) 6 USB 2.0 ports (2 rear + 4 via header) Form Factor: microATX Dimensions: 9.6" x 9.6" (24.38cm x 24.38cm)

1.14th/13th/12th Gen Intel® Core(TM) i9/i7/i5/i3 Processors, Single Socket LGA-1700 supported, Up to 150W TDP Intel W680 2 PCI-E 5.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x4 1 - 5V PCI 32bit M.2 Interface: 3 PCI-E 4.0 x4, RAID 0 & 1 M.2 Form Factor: 2280 M.2 Key: M-Key Single LAN with Intel Ethernet i225LM Single LAN with Intel PHY I219LM LAN controller for AMT/vPro Single LAN with RTL8211 Dedicated LAN for IPMI 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz, in 4 DIMM slots Intel W680 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10 1 DP 1.4a port, 1 HDMI 2.1 port, 1 DVI - D port Form Factor: ATX Dimensions: 12" x 9.6" (30.48cm x 24.38cm)

5th/4th Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP Support CXL Intel® C741 Chipset Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s(1DPC) in 16 DIMM slots 4 PCIe 5.0 x16 2 PCIe 5.0 x8 Broadcom BCM57416 Dual ports 10G LAN 6 USB3.0 and 3 USB2.0 2 SATA DOM ports 2 M.2 6 NVMe ports PCIe 5.0 x4 via 3 MCIO connectors 8 SATA3.0 ports Form Factor: EATX Dimension: 12.1" x 13.05" (30.74cm x 33.15cm)

AMD EPYC(TM) 9004/9005 Series Processors (AMD EPYC(TM) 9005 series drop-in support requires board revision 2.x) System on Chip Support up to DDR5 12 DIMM slots (1DPC) 3 PCIe 5.0 x16 2 PCIe 5.0 x8 Up to 6 USB 3.0 ports(4 rear + 2 via header) 8 SATA3 6 PWM 4-pin Fans with tachometer status monitoring M.2 Interface: 2 PCIe 4.0 x4 M.2 Form Factor: 2280, 22110 Form Factor: ATX Dimensions: 12" x 10.1" (30.48cm x 25.65cm)

AMD EPYC(TM) 9005 series Processors System on Chip Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s 3 PCIe 5.0 x16, 2 PCIe 5.0 x8 2x 10GBase-T LAN Ports via Broadcom BCM57416 Up to 6 USB 3.0 ports(4 rear + 2 via header) 8 SATA3 ASPEED AST2600 BMC graphics 6 PWM 4-pin Fans with tachometer status monitoring M.2 Interface: 2 PCIe 4.0 x4, M.2 Form Factor: 2280, 22110 Form Factor: ATX Dimensions: 12" x 10.1" (30.48cm x 25.65cm)

10th Generation Intel Core i9/Core i7/Corei5/Corei3/Pentium/Celeron Processor, Intel Xeon W-1200 Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP Intel W480 Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4 (in x8 slot), 1 PCI-E 3.0 x4 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110 1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230 1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port Intel W480 controller for 4 SATA3 (6 Gbps) ports, RAID 0,1,5,10 Dual LAN with Intel X550 10GBase-T Ethernet Controller Single LAN with Intel PHY I219LM LAN controller Single LAN with Intel Ethernet Controller I210-AT Form Factor: microATX, Dimensions: 9.6"" x 9.6"" (24.38cm x 24.38cm)

Intel Xeon W-3400 series and Xeon W-2400 series processors, Up to 350W TDP Intel W790 Up to 4TB/2TB 3DS ECC RDIMM, 1TB/512GB ECC RDIMM DDR5-4800MT/s(1DPC)/ 4400MT/s(2DPC), in 16 DIMM slots M.2 Interface: 4 PCIe 5.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Socket (w/o heat sink) Xeon W-3400 Series Processors: 6 PCIe 5.0 x16 Slots, support up to 6 Single Width/4 Double Width/2 Triple Width GPU cards Xeon W-2400 Series Processors:3 PCIe 5.0 x16 Slots, support up to 3 Single Width/3 Double Width/2 Triple Width GPU cards (slot 3/5/7) 1GbE LAN port with Intel Ethernet Controller I210-AT 10GbE LAN with Marvell AQC113C 8 SATA 3 (6Gb, RAID 0, 1, 5, 10) 2 U.2 PCIe 3.0 for NVMe 2.5" SSD drives (U.2-1, U.2-2) IPMI Supported Overclocking Supported (optional) Form Factor: E-ATX Dimensions: 13" x 12" (330.2cm x 304.8cm)

Intel® Xeon® 6700E-series processors, Single Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP Up to 1TB ECC RDIMM DDR5-6400MT/s in 8 DIMM slots 4 PCIe 5.0 X8 via MCIO connectors 1 PCIe 5.0 x8, 2 PCIe 5.0 x16, M.2 Interface: 2 PCIe 5.0 x2 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key Dual LAN with 10GBase-T with Intel® X710-AT2 Onboard TPM2.0 4 USB 3.2 Gen1 (2 rear, 2 via header), 2 SATA3 ports Form Factor: micro-ATX Dimensions: 9.6" x 9.6" (24.38cm x 24.38cm)

Intel Xeon W-3400 series and Xeon W-2400 series processors, TDP up to 350W Intel W790 Up to 2TB RDIMM 3DS, 512GB ECC RDIMM DDR5-4800MT/s (1DPC)/4400MT/s (2DPC), in 8 DIMM slots 3 PCIe 5.0 x16 Slots, support up to 3 Single Width/2 Double Width/2 Triple Width GPU cards 1 PCIe 4.0 x4 Slots M.2 Interface: 2 PCIe 5.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Socket (w/o heat sink) 1GbE LAN port with Intel Ethernet Controller I210-AT 10GbE LAN with Marvell AQC113 6 SATA 3 (6Gb, RAID 0, 1, 5, 10) IPMI Supported Overclocking Supported (optional) Form Factor: CEB Dimensions: 12" x 10.5" (304.8cm x 266.7cm)

AMD EPYC(TM) 9005 series Processors System on Chip Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s 3 PCIe 5.0 x16, 2 PCIe 5.0 x8 Dual LAN with Broadcom BCM5720 1GBase-T Up to 6 USB 3.0 ports(4 rear + 2 via header) 8 SATA3 ASPEED AST2600 BMC graphics 6 PWM 4-pin Fans with tachometer status monitoring M.2 Interface: 2 PCIe 4.0 x4, M.2 Form Factor: 2280, 22110 Form Factor: ATX Dimensions: 12" x 10.1" (30.48cm x 25.65cm)

Deep mini-ITX (6.7" x 8.2") Supports Intel® Xeon® 6300-series, Xeon® E-2400 series, and Pentium® Gold G7400/G7400T processors 4 DIMM slots (2DPC), supports DDR5 ECC UDIMM 1 PCIe5.0 x16 1 OCuLink (PCIe4.0 x4 or SATA 6Gb/s), 1 OCuLink (PCIe4.0 x4), 1 OCuLink (PCIe3.0 x4 or SATA 6Gb/s) Supports 2 M.2 (PCIe4.0 x4) 8 SATA 6Gb/s 2 RJ45 (10GbE) by Intel X550 Supports ATX PSU or 12V DC-in Remote Management (IPMI) COO: Vietnam

Intel® Xeon® E-2300 Processor, 10th Generation Intel® Pentium® Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP Intel® C256 Up to 128GB ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots 1 PCI-E 4.0 x16 1 PCI-E 4.0 x4 (in x8 slot) 1 PCI-E 3.0 x4 (in x8 slot) M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key Quad LAN with Intel® Ethernet Controller I210 Intel® C256 controller for 8 SATA3 (6 Gbps) ports, RAID 0,1,5,10 2 SuperDOM with built-in power I/O: 1 VGA, 2 COM, 1 TPM header 5x USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6x USB 2.0 (2 rear, 4 via headers) Gen12 iGPU support Form Factor: Micro-ATX Dimensions: 9.6" x 9.6" (24.38cm x 24.38cm)
