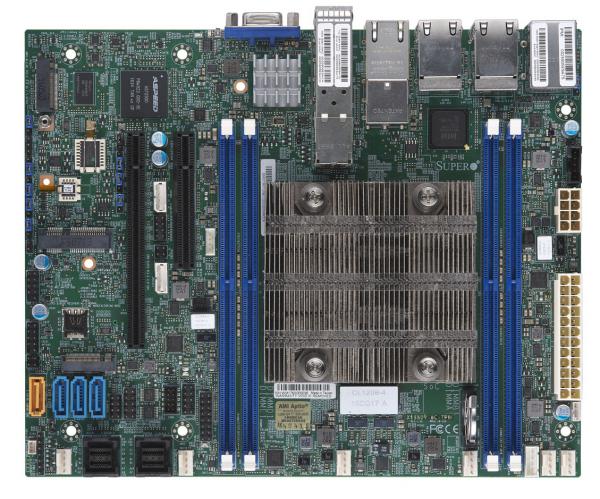

Supermicro Motherboard X11SDV-8C-TP8F (retail pack)
Produktnummer:
AS-X11SDV-8C-TP8F-O
EAN:
672042323548
Hersteller-Nr.:
MBD-X11SDV-8C-TP8F-O
Hersteller:
SUPERMICRO
Verfügbarkeit:
Nicht lagernd
Lieferzeit:
Lieferzeit auftragsbezogen
Preis auf Anfrage
Produktinformationen "Supermicro Motherboard X11SDV-8C-TP8F (retail pack)"
Intel Xeon Processor D-2146NT, CPU TDP support Up to 80W TDP
System on Chip
Up to 256GB Registered ECC RDIMM, DDR4-2133MHz, Up to 512GB LRDIMM LRDIMM, DDR4-2133MHz, in 4 DIMM slots
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x16
Mini-PCI-E with mSATA support
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2280
1 M.2 B-Key SATA/PCI-E 3.0 x2, 3042
U.2 Interface: 2 PCI-E 3.0 x4,
2 PCI-E 3.0 NVMe x4 Internal Port(s)
1 VGA D-Sub Connector port
SoC controller for 12 SATA3 (6 Gbps) ports, RAID 0,1,5,10
Quad LAN with Intel Ethernet Controller I350-AM4
Dual LAN with 10G SFP+ LAN via SoC
Dual LAN with 10Gbase-T
Intel Quick Assist Technology
Supports 12V DC power input
Form Factor: Flex-ATX
Dimensions: 9" x 7.25" (22.86cm x 18.42cm)
| Hersteller: | Supermicro |
|---|---|
| CPU Sockel Typ: | CPU onboard |
| Chipsatz: | System on Chip |
| Formfaktor: | Flex-ATX |
| CPU Sockel: | 1 (UP) |
| DRAM Typ: | DDR4 |
| DRAM Slots: | 4 |
| Onboard LAN: | 10Gbit/s |
