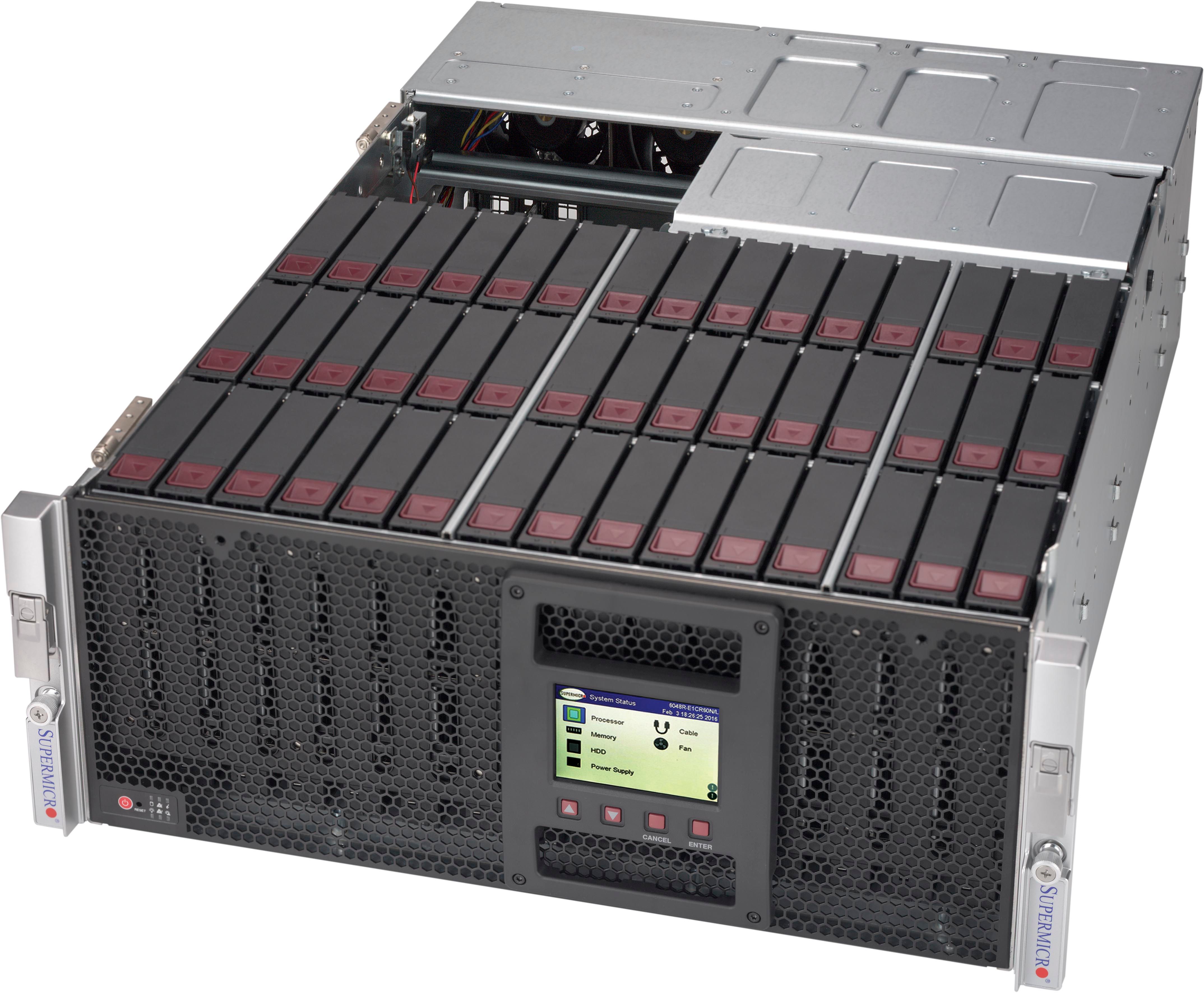

Product information "Supermicro SuperChassis 946LE1C-R1K66JBOD"
Extreme High Density and High Capacity Storage Chassis support 45 x 3.5" Top Loading SAS/SATA 12Gb/s Hot Swapping HDD/SSD Bays
Tool-less HDD tray with HDD LED indicator
Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
1x IPMI port for Remote System Power on/off and system monitoring
Support NTP for time synchronization & RTC battery backup
1600W (1+1) Redundant High-efficiency Platinum Level Power Supplies
Optimized cooling w/ 5x 80x38mm rear hot-swap fans
Support front LCD panel for system status & error info (Option)
Ideal for Cloud backup, data Replication or High density Archive Storage Applications
Qualified SAS HBA / controller:
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller Dimensions: Width 17.2" (437mm), Height 7" (178mm), Depth 26" (660 mm)
Gross Weight: 120 lbs (54.43 kg)
| Form factor: | JBOD 4U |
|---|---|
| Manufacturer: | Supermicro |
