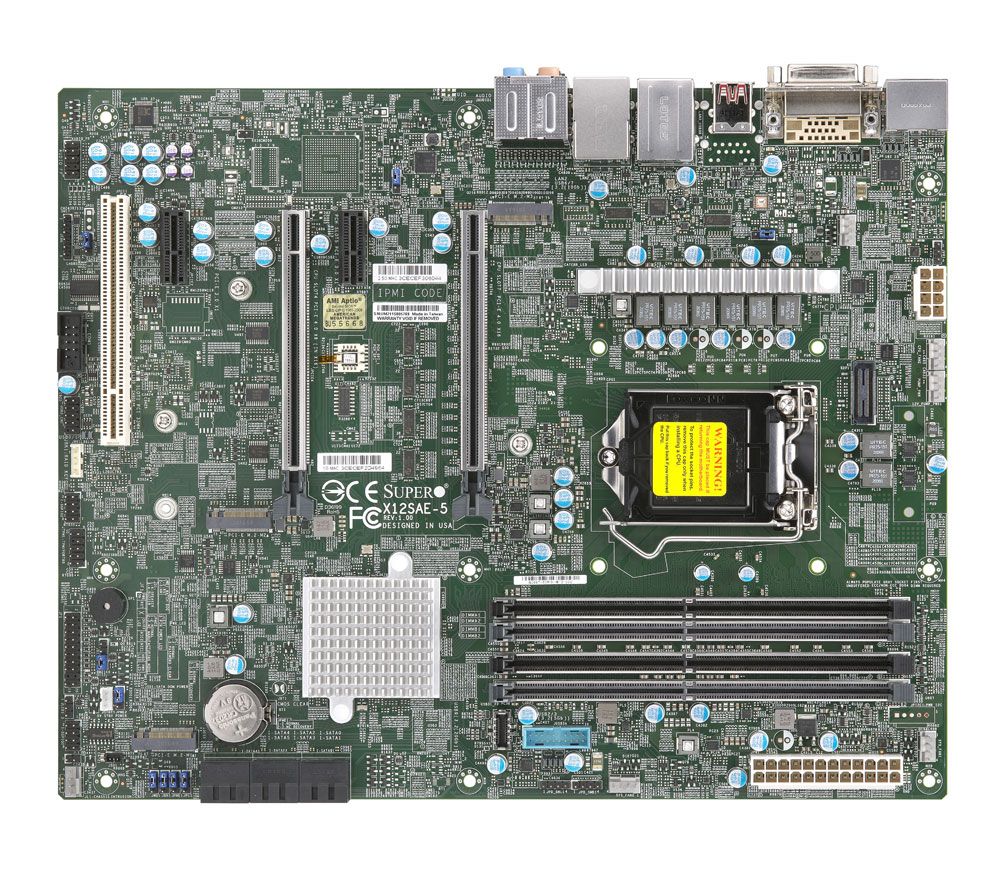

Supermicro Motherboard X12SAE-5 (retail pack)
Product number:
AS-X12SAE-5-O
Manufacturer no.:
MBD-X12SAE-5-O
Manufacturer:
SUPERMICRO
Availability:
Not in stock
Delivery time:
No longer available
Price on request
Product information "Supermicro Motherboard X12SAE-5 (retail pack)"
10th Generation Intel® Core(TM)
i9/Core(TM) i7/Core(TM) i5/Core(TM)
i3/Pentium®/Celeron® Processor
11th Generation Intel® Core(TM)
i5/i7/i9 Processors, Intel® Xeon® W-1300 Processors
Single Socket LGA-1200 (Socket H5) supported,
CPU TDP supports Up to 125W TDP
Intel® W580
128GB Unbuffered ECC/non-ECC UDIMM,
DDR4-3200MHz, in 4 DIMM slots
2 PCI-E 4.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x1
1 - 5V PCI 32bit
M.2 Interface: 1 PCI-E 4.0 x4 and 2 PCI-E 3.0 x4, RAID 0 & 1
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
RAID 5 only applied for INTEL Storage Device
1 DP 1.4a port, 1 HDMI 2.0b port, 1 DVI - D port
Intel® W580 controller for 4 SATA3 (6 Gbps) ports,
RAID 0,1,5,10
Single LAN with Intel® Ethernet i225V
Single LAN with Intel® PHY I219LM LAN controller
for AMT/vPro
Form Factor: ATX, Dimensions: 12" x 9.6" (30.48cm x 24.38cm)
| # of CPU Socktets: | 1 (UP) |
|---|---|
| CPU Socket type: | LGA-1200 |
| Chipset: | Intel W580 |
| DRAM slots: | 4 |
| DRAM type: | DDR4 |
| Form factor: | ATX |
| Onboard LAN: | 2,5Gbit/s |
| Manufacturer: | Supermicro |
