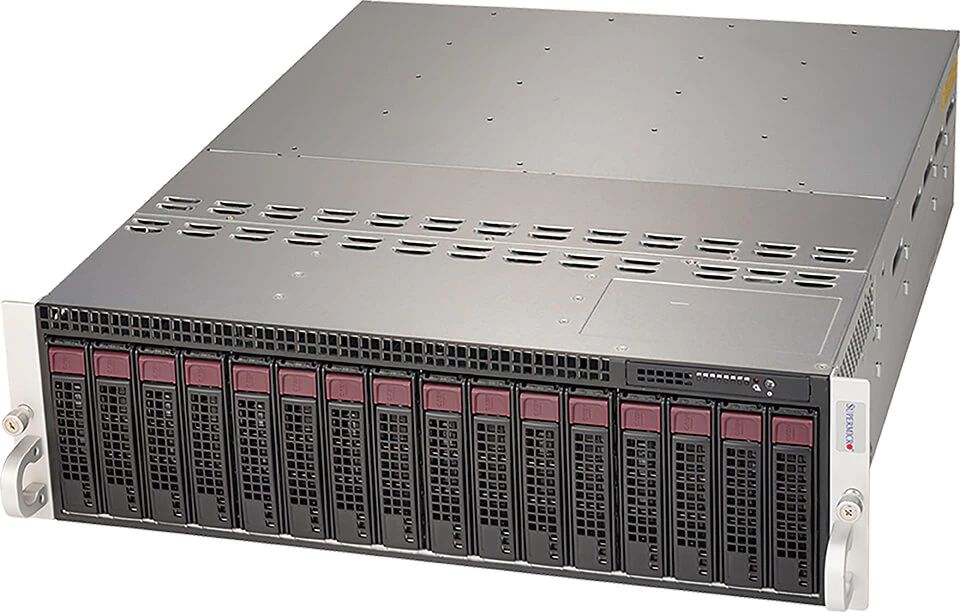

Supermicro MicroCloud SuperServer 530MT-H8TNR
Product number:
AS-530MT-H8TNR
Manufacturer no.:
SYS-530MT-H8TNR
Manufacturer:
SUPERMICRO
Availability:
Not in stock
Delivery time:
No longer available
Price on request
Product information "Supermicro MicroCloud SuperServer 530MT-H8TNR"
8 set of Intel Xeon E-2300 series and
Pentium processor
Intel C256
8 set of Up to 128GB ECC/non ECC UDIMM
DDR4 3200MHz, in 4 DIMM sockets
8 set of PCI-E 4.0 x8 (in x16 slot) low profile slot
and 8 set of Micro-LP slots (MicroLP upgradable)
8 set of Dual 1GbE LAN Ports
8 set of 2x Front Hot-swappable 3.5" SATA3 HDD
or Hybrid 2x 2.5" SAS/SATA3/NVMe U.2 drives w/ option kits
2000W Redundant Titanium Level high-efficiency power supplies
Form Factor: 3U Rackmount
Dimensions: Height 5.21" (132mm), Width 17.26" (438mm), Depth 23.2" (589mm)
Gross Weight: 88 lbs (39.92 kg)
| # of CPU Sockets: | 1 (UP) |
|---|---|
| CPU Socket Type: | Socket LGA-1200 |
| DRAM slots: | 4 |
| DRAM type: | DDR4 |
| Video on board: | CPU |
| HE: | 3U |
| # of power supplies: | 2 |
| Onboard LAN: | 1Gbit/s |
| Server type: | Storage Server |
| Manufacturer: | Supermicro |
